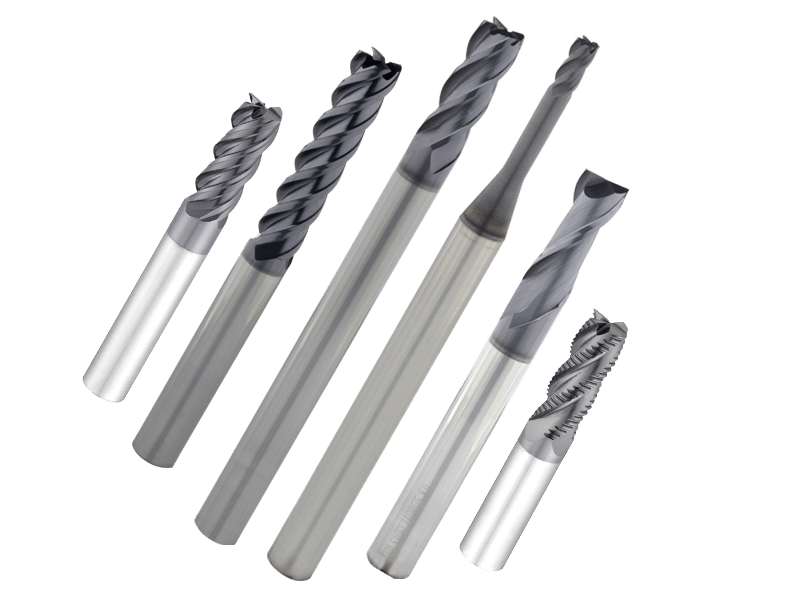

HRC 45 Square End Mill 2 Flutes-[copy]
Model : YDS10E2A, YDS10E2B-[copy]
Feature
- Versatile Application: General-purpose line for machining materials below HRC 45.
- Comprehensive Selection: Includes square, ball nose, corner radius, and specialized designs (unequal helix, roughing, heavy cutting).
- Extended Tool Life: Equipped with AlTiN (AT) and TiAlN (SF) coatings to enhance durability.
- Optimized Performance: Multiple flute numbers and high-quality materials ensure smooth-running operations.
Description
The Lion King end mills series is a general purpose line used for machining materials with an HRC below 45 and includes square end mills, ball nose end mills, corner radius end mills, and other special designs for softer metals such as unequal helix square end mill, roughing end mill, heavy cutting end mill, and long taper ball nose end mill. Provided different flute numbers to be applied for various metal machining. Apart from heavy cutting end mills with the coating of TiAlN (SF), our products in this series basically come with the coating of AlTiN (AT) to enhance the tool life. Lion King series offers smooth running operations using the best-selling materials available.
Specification
| Type No. | Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
|---|---|---|---|---|---|
| 35 Degree | 45 Degree | D | H | L | D2 |
| E2A04050-1.0 | E2B04050-1.0 | 1 | 3 | 50 | 4 |
| E2A04050-1.5 | E2B04050-1.5 | 1.5 | 4 | 50 | 4 |
| E2A04050-2.0 | E2B04050-2.0 | 2 | 5 | 50 | 4 |
| E2A04050-2.5 | E2B04050-2.5 | 2.5 | 7 | 50 | 4 |
| E2A03050-3.0 | E2B03050-3.0 | 3 | 9 | 50 | 3 |
| E2A04050-3.0 | E2B04050-3.0 | 3 | 9 | 50 | 4 |
| E2A06050-6.0 | E2B06050-3.0 | 3 | 9 | 50 | 6 |
| E2A04050-4.0 | E2B04050-4.0 | 4 | 11 | 50 | 4 |
| E2A06050-4.0 | E2B06050-4.0 | 4 | 11 | 50 | 6 |
| E2A05050-5.0 | E2B05050-5.0 | 5 | 13 | 50 | 5 |
| E2A06050-5.0 | E2B06050-5.0 | 5 | 13 | 50 | 6 |
| E2A06050-6.0 | E2B06050-6.0 | 6 | 16 | 50 | 6 |
| E2A08060-7.0 | E2B08060-7.0 | 7 | 18 | 60 | 8 |
| E2A08060-8.0 | E2B08060-8.0 | 8 | 20 | 60 | 8 |
| E2A10075-9.0 | E2B10075-9.0 | 9 | 23 | 75 | 10 |
| E2A10075-10.0 | E2B10075-10.0 | 10 | 25 | 75 | 10 |
| E2A12075-12.0 | E2B12075-12.0 | 12 | 30 | 75 | 12 |
| E2A16100-13.0 | E2B16100-13.0 | 13 | 35 | 100 | 13 |
| E2A14100-14.0 | E2B14100-14.0 | 14 | 35 | 100 | 14 |
| E2A16100-14.0 | E2B16100-14.0 | 14 | 35 | 100 | 16 |
| E2A16100-15.0 | E2B16100-15.0 | 15 | 38 | 100 | 16 |
| E2A16100-16.0 | E2B16100-16.0 | 16 | 40 | 100 | 16 |
| E2A20100-18.0 | E2B20100-18.0 | 18 | 40 | 100 | 20 |
| E2A20100-20.0 | E2B20100-20.0 | 20 | 45 | 100 | 20 |
| E2A20100-20.0 | E2B20100-20.0 | 20 | 45 | 100 | 20 |
| E2A25100-22.0 | E2B25100-22.0 | 22 | 45 | 100 | 25 |
| E2A25100-25.0 | E2B25100-25.0 | 25 | 45 | 100 | 25 |
